LEDモジュール

産業分野のみならず、農業分野、医療・ライフサイエンス分野において
必要とされる特殊な波長や高出力なLEDを供給しています。

Chip On Board高出力・多波形LED

お客様のご要望を叶えるためのカスタムLED

LED Type

LED Package

PO

Beam Angle

Chip On Board高出力・多波形LED

お客様のご要望を叶えるためのカスタムLED

Product	IF	PO	VF	Wavelength	LED Size	Beam Angle	Data Sheet
3939F28502D000 IF: 350mA PO: 40 - 60mW VF: 6.0 - 8.0V Wavelength: 280 - 290nm LED Size: 3.9 x 3.9mm Beam Angle: 60°	350mA	40 - 60mW	6.0 - 8.0V	280 - 290nm	3.9 x 3.9mm	60°	— お問合せ	お問合せ
3939F28502D000 IF: 350mA PO: 40 - 60mW VF: 6.0 - 8.0V Wavelength: 280 - 290nm LED Size: 3.9 x 3.9mm Beam Angle: Flat	350mA	40 - 60mW	6.0 - 8.0V	280 - 290nm	3.9 x 3.9mm	Flat	— お問合せ	お問合せ
3939X25503F000 IF: 500mA PO: 70mW VF: 6.0 - 8.0V Wavelength: 250 - 260nm LED Size: 3.9 x 3.9mm Beam Angle: 30°	500mA	70mW	6.0 - 8.0V	250 - 260nm	3.9 x 3.9mm	30°	— お問合せ	お問合せ
3939X25503F000 IF: 500mA PO: 70mW VF: 6.0 - 8.0V Wavelength: 250 - 260nm LED Size: 3.9 x 3.9mm Beam Angle: 60°	500mA	70mW	6.0 - 8.0V	250 - 260nm	3.9 x 3.9mm	60°	— お問合せ	お問合せ
3939X25503F000 IF: 500mA PO: 70mW VF: 6.0-8.0V Wavelength: 250-260nm LED Size: 3.9x3.9mm Beam Angle: Flat	500mA	70mW	6.0-8.0V	250-260nm	3.9x3.9mm	Flat	— お問合せ	お問合せ
3939X26503F000 IF: 500mA PO: 90mW VF: 6.0 - 8.0V Wavelength: 260 - 270nm LED Size: 3.9 x 3.9mm Beam Angle: 30°	500mA	90mW	6.0 - 8.0V	260 - 270nm	3.9 x 3.9mm	30°	— お問合せ	お問合せ
3939X26503F000 IF: 500mA PO: 90mW VF: 6.0 - 8.0V Wavelength: 260 - 270nm LED Size: 3.9 x 3.9mm Beam Angle: 60°	500mA	90mW	6.0 - 8.0V	260 - 270nm	3.9 x 3.9mm	60°	— お問合せ	お問合せ
3939X26503F000 IF: 500mA PO: 90mW VF: 6.0 - 8.0V Wavelength: 260 - 270nm LED Size: 3.9 x 3.9mm Beam Angle: Flat	500mA	90mW	6.0 - 8.0V	260 - 270nm	3.9 x 3.9mm	Flat	— お問合せ	お問合せ
3939X27503F000 IF: 500mA PO: 70mW VF: 6.0 - 8.0V Wavelength: 270 - 280nm LED Size: 3.9 x 3.9mm Beam Angle: 60°	500mA	70mW	6.0 - 8.0V	270 - 280nm	3.9 x 3.9mm	60°	— お問合せ	お問合せ
3939X27503F000 IF: 500mA PO: 70mW VF: 6.0 - 8.0V Wavelength: 270 - 280nm LED Size: 3.9 x 3.9mm Beam Angle: Flat	500mA	70mW	6.0 - 8.0V	270 - 280nm	3.9 x 3.9mm	Flat	— お問合せ	お問合せ
3939X28503F000 IF: 500mA PO: 70mW VF: 6.0 - 8.0V Wavelength: 280 - 290nm LED Size: 3.9 x 3.9mm Beam Angle: 30°	500mA	70mW	6.0 - 8.0V	280 - 290nm	3.9 x 3.9mm	30°	— お問合せ	お問合せ
3939X28503F000 IF: 500mA PO: 70mW VF: 6.0 - 8.0V Wavelength: 280 - 290nm LED Size: 3.9 x 3.9mm Beam Angle: 60°	500mA	70mW	6.0 - 8.0V	280 - 290nm	3.9 x 3.9mm	60°	— お問合せ	お問合せ
3939X28503F000 IF: 500mA PO: 70mW VF: 6.0 - 8.0V Wavelength: 280 - 290nm LED Size: 3.9 x 3.9mm Beam Angle: Flat	500mA	70mW	6.0 - 8.0V	280 - 290nm	3.9 x 3.9mm	Flat	— お問合せ	お問合せ
3939X29503F000 IF: 500mA PO: 70mW VF: 6.0 - 8.0V Wavelength: 290 - 300nm LED Size: 3.9 x 3.9mm Beam Angle: 30°	500mA	70mW	6.0 - 8.0V	290 - 300nm	3.9 x 3.9mm	30°	— お問合せ	お問合せ
3939X29503F000 IF: 500mA PO: 70mW VF: 6.0 - 8.0V Wavelength: 290 - 300nm LED Size: 3.9 x 3.9mm Beam Angle: 60°	500mA	70mW	6.0 - 8.0V	290 - 300nm	3.9 x 3.9mm	60°	— お問合せ	お問合せ
3939X29503F000 IF: 500mA PO: 70mW VF: 6.0 - 8.0V Wavelength: 290 - 300nm LED Size: 3.9 x 3.9mm Beam Angle: Flat	500mA	70mW	6.0 - 8.0V	290 - 300nm	3.9 x 3.9mm	Flat	— お問合せ	お問合せ
3535X45003D000 IF: 350-700mA PO: — VF: 2.8 - 3.6 Wavelength: Royal Blue (450 - 460) LED Size: 3.5 x 3.5mm Beam Angle: 30°	350-700mA	—	2.8 - 3.6V	Royal Blue (450 - 460)	3.5 x 3.5mm	30°	— お問合せ	お問合せ
3535X45003D000 IF: 350 - 700mA PO: — VF: 2.8 - 3.6 Wavelength: Royal Blue (450 - 460) LED Size: 3.5 x 3.5mm Beam Angle: 60°	350 - 700mA	—	2.8 - 3.6V	Royal Blue (450 - 460)	3.5 x 3.5mm	60°	— お問合せ	お問合せ
3535X45003D000 IF: 350 - 700mA PO: — VF: 2.8 - 3.6 Wavelength: Royal Blue (450 - 460) LED Size: 3.5 x 3.5mm Beam Angle: 90°	350 - 700mA	—	2.8 - 3.6V	Royal Blue (450 - 460)	3.5 x 3.5mm	90°	— お問合せ	お問合せ
3535X45003D000 IF: 350 - 700mA PO: — VF: 2.8 - 3.6 Wavelength: Royal Blue (450 - 460) LED Size: 3.5 x 3.5mm Beam Angle: 120°	350 - 700mA	—	2.8 - 3.6V	Royal Blue (450 - 460)	3.5 x 3.5mm	120°	— お問合せ	お問合せ
3535X59003D000 IF: 350 - 700mA PO: — VF: 2.8 - 3.6 Wavelength: Green (515 - 530) LED Size: 3.5 x 3.5mm Beam Angle: 30°	350 - 700mA	—	2.8 - 3.6V	Green (515 - 530)	3.5 x 3.5mm	30°	— お問合せ	お問合せ
3535X59003D000 IF: 350 - 700mA PO: — VF: 2.8 - 3.6 Wavelength: Green (515 - 530) LED Size: 3.5 x 3.5mm Beam Angle: 60°	350 - 700mA	—	2.8 - 3.6V	Green (515 - 530)	3.5 x 3.5mm	60°	— お問合せ	お問合せ
3535X59003D000 IF: 350 - 700mA PO: — VF: 2.8 - 3.6 Wavelength: Green (515 - 530) LED Size: 3.5 x 3.5mm Beam Angle: 90°	350 - 700mA	—	2.8 - 3.6V	Green (515 - 530)	3.5 x 3.5mm	90°	— お問合せ	お問合せ
3535X59003D000 IF: 350 - 700mA PO: — VF: 2.8 - 3.6 Wavelength: Green (515 - 530) LED Size: 3.5 x 3.5mm Beam Angle: 120°	350 - 700mA	—	2.8 - 3.6V	Green (515 - 530)	3.5 x 3.5mm	120°	— お問合せ	お問合せ
3535X59003D000 IF: 350 - 700mA PO: — VF: 1.8 - 2.6 Wavelength: Yellow (585 - 595) LED Size: 3.5 x 3.5mm Beam Angle: 30°	350 - 700mA	—	1.8 - 2.6V	Yellow (585 - 595)	3.5 x 3.5mm	30°	— お問合せ	お問合せ
3535X59003D000 IF: 350 - 700mA PO: — VF: 1.8 - 2.6 Wavelength: Yellow (585 - 595) LED Size: 3.5 x 3.5mm Beam Angle: 60°	350 - 700mA	—	1.8 - 2.6V	Yellow (585 - 595)	3.5 x 3.5mm	60°	— お問合せ	お問合せ
3535X59003D000 IF: 350 - 700mA PO: — VF: 1.8 - 2.6 Wavelength: Yellow (585 - 595) LED Size: 3.5 x 3.5mm Beam Angle: 90°	350 - 700mA	—	1.8 - 2.6V	Yellow (585 - 595)	3.5 x 3.5mm	90°	— お問合せ	お問合せ
3535X59003D000 IF: 350 - 700mA PO: — VF: 1.8 - 2.6 Wavelength: Yellow (585 - 595) LED Size: 3.5 x 3.5mm Beam Angle: 120°	350 - 700mA	—	1.8 - 2.6V	Yellow (585 - 595)	3.5 x 3.5mm	120°	— お問合せ	お問合せ

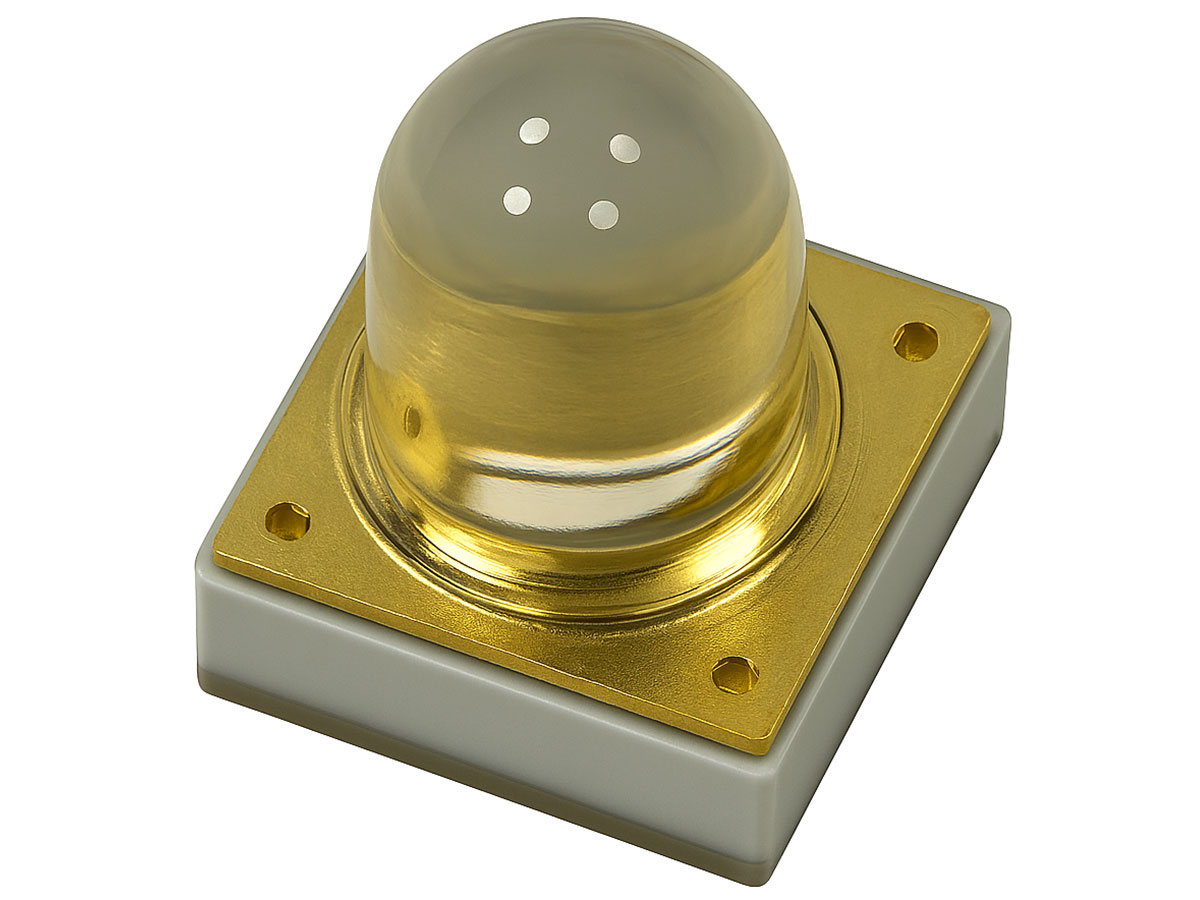

3535A62503D000 IF: 350 - 700mA PO: — VF: 1.8 - 2.6 Wavelength: Red (620 - 630) LED Size: 3.5 x 3.5mm Beam Angle: 30°	350 - 700mA	—	1.8 - 2.6V	Red (620 - 630)	3.5 x 3.5mm	30°	— お問合せ	お問合せ
3535A62503D000 IF: 350 - 700mA PO: — VF: 1.8 - 2.6 Wavelength: Red (620 - 630) LED Size: 3.5 x 3.5mm Beam Angle: 60°	350 - 700mA	—	1.8 - 2.6V	Red (620 - 630)	3.5 x 3.5mm	60°	— お問合せ	お問合せ
3535A62503D000 IF: 350 - 700mA PO: — VF: 1.8 - 2.6 Wavelength: Red (620 - 630) LED Size: 3.5 x 3.5mm Beam Angle: 90°	350 - 700mA	—	1.8 - 2.6V	Red (620 - 630)	3.5 x 3.5mm	90°	— お問合せ	お問合せ
3535A62503D000 IF: 350 - 700mA PO: — VF: 1.8 - 2.6 Wavelength: Red (620 - 630) LED Size: 3.5 x 3.5mm Beam Angle: 120°	350 - 700mA	—	1.8 - 2.6V	Red (620 - 630)	3.5 x 3.5mm	120°	— お問合せ	お問合せ
